Specifications for 100ZYT series DC motor


Model Terminal Voltage No Load Data Rated Load Data Body Length
(VDC) Amps RPM N-m Amps RPM (mm)
100ZYT001-1 24 2.3 3921 0.8 15.6 3454 165
100ZYT001-3 24 3.5 4660 0.8 20.3 4148 165
100ZYT001-27 24 1.2 1600 0.8 7.5 1450 165
100ZYT003-17 24 1.5 2350 0.8 10.5 2250 165
100ZYT007 12 3 1900 1.2 24.5 1500 200
100ZYT017 24 2.6 3700 1.5 24.0 3170 145

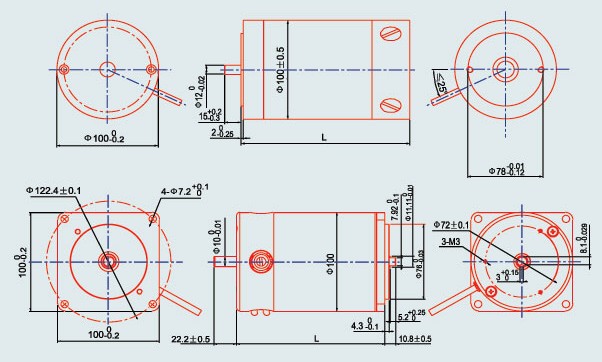

Outline drawing for 100ZYT series DC motor
