Specifications for 45ZYT series DC motor


Model Terminal Voltage No Load Data Rated Load Data Body Length
(VDC) Amps RPM N-m Amps RPM (mm)
45ZYT001 24 0.3 4300 0.05 1.5 3700 67
45ZYT002 24 0.3 3600 0.06 1.5 3200 67

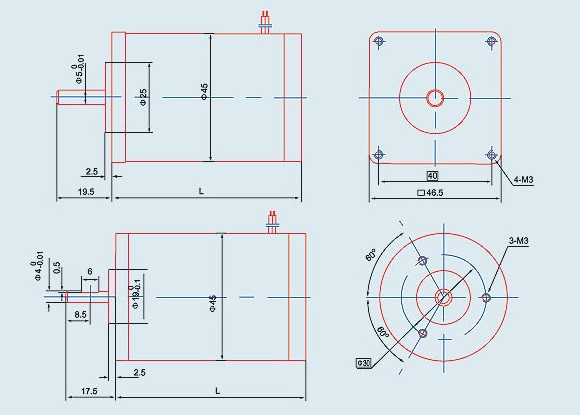

Outline drawing for 45ZYT series DC motor
