Specifications for 60ZYT series DC motor


Model Terminal Voltage No Load Data Rated Load Data Body Length
(VDC) Amps RPM N-m Amps RPM (mm)
60ZT009 36 0.4 3550 0.3 3.5 2950 120
60ZYT009-1 24 0.35 3875 0.3 5.6 3150 120

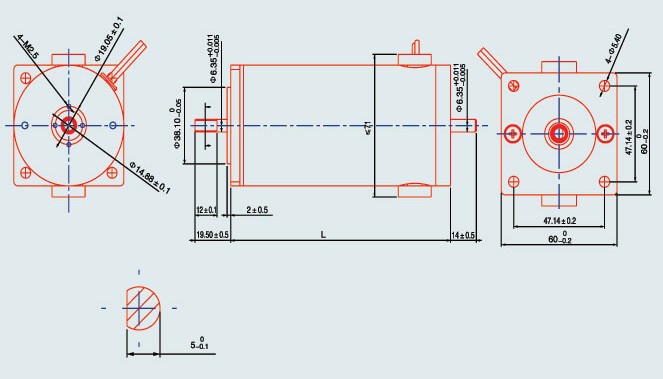

Outline drawing for 60ZYT series DC motor
