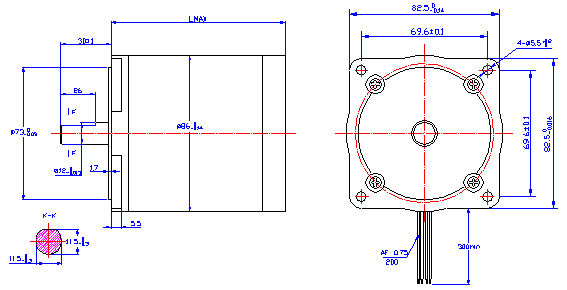

Dimension for 86BYGH series step motor
Wiring diagram for 86BYGH series step motor

Specifications for 86BYG series step motor

Model

　

 Step angle   Motor Length Rated Voltage  Rated Current Phase Resistance Phase Inductance Holding Torque Lead Wire Rotor Inertia Detent Torque Motor Weight
( ° )  (mm)  (V)  (A) ( Ω ) (mH)  (g.cm) (NO.) (g. c㎡) (g.cm) (kg)
86BYGH450B-001  1.8 97 6.27 1.65 3.8 24 5.2 4 2.2 2 2.9
86BYGH450B-002  1.8 97 3.9 3 1.3 7.5 5.1 4 2.2 2 2.9
86BYGH450B-003  1.8 97 3.2 4 0.8 5.2 5.4 4 2.2 2 2.9
