Specifications for 90ZYT series DC motor


Model Terminal Voltage No Load Data Rated Load Data Body Length
(VDC) Amps RPM N-m Amps RPM (mm)
90ZYT001 24 3.0 5300 0.8 23.0 4700 154.5
90ZYT001-1 24 3.0 5300 0.8 25.0 4800 154.5
90ZYT001-2 24 0.6 2100 0.51 5.5 1700 154.5
90ZYT004 12 3.5 2000 1.2 25.0 1500 199.5
90ZYT005 12 4.0 5500 0.58 30.0 3800 154.5
90ZYT005-1 24 1.2 4200 1.0 20.5 3546 154.5

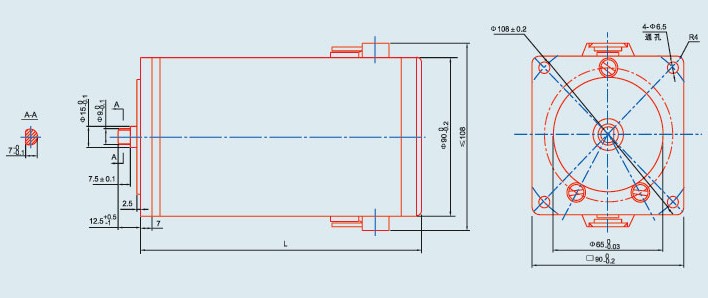

Outline drawing for 90ZYT series DC motor
