Specifications for 94ZYT series DC motor


Model Terminal Voltage No Load Data Rated Load Data Body Length
VDC) Amps RPM N-m Amps RPM (mm)
94ZYT002 24 3.2 4900 1 24.5 4400 170
94ZYT006 24 3.5 5250 1.23 32.6 4570 170

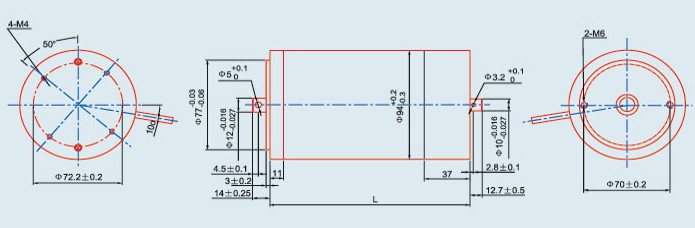

Outline drawing for 94ZYT series DC motor
