     当前位置:首页产品展示 单相交流电机


Specifications for 0120psc series AC motor


Model Voltage Frequency Nominal output power Current Rated speed Capacitor
(V) (Hz) (W) (A) (r/min) (μF/V)
YYF120-50-4S 220-240 50 50 0.5 1350/1SP 3µF/450V
YYF120-100-4S 220-240 50 100 1 1300/6SP 3µF/450V
YYF120-180-4S 220-240 50 180 1.4 1300/6SP 4µF/450V
YYF120-210-4S 220-240 50 210 1.6 1260/3SP 5µF/450V
YYF120-370-4S 220-240 50 370 3.2 1300/5SP 10µF/450V
YYF120-100-4S 220-240 50 100 0.8 1350/1SP 3µF/450V
YYF120-150-4S 220-240 50 150 1.3 1350/1SP 6µF/450V
YYF120-125-4D 220-240 50 125 1.36 1425/1SP 5µF/450V
YYF120-90-4D 220-240 50 90 0.8 1425/1SP 4µF/450V
YYF120-80-4D 220 50 80 1 1100/1SP 5µF/450V
YYF120-120-4D 220 50 120 1.2 1250/1SP 5µF/450V
YYF120-80-4S 220 50 80 0.8 1250/2SP 4µF/450V
YYF120-120-4S 220 50 120 1.1 1250/2SP 5µF/450V
YYF120-180-4S 220 50 180 1.7 1250/2SP 8µF/450V
YYF120-35-6D 220 50 35 0.33 900/4SP 4µF/450V
YYF120-40-6D 220 50 40 0.35 900/4SP 4µF/450V
YYF120-40-4D 220 50 40 0.37 1210/3SP 4µF/450V
YYF120-90-4D 230 50 90 0.95 1400/1SP 4µF/450V
YYF120-120-4D 230 50 120 1.1 1400/1SP 5µF/450V
YYF120-180-4D 230 50 180 1.5 1400/1SP 6µF/450V
YYF120-250-4D 230 50 250 2.2 1400/1SP 6µF/450V

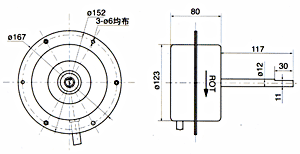

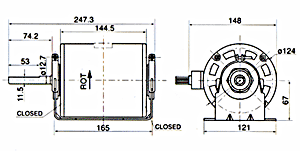

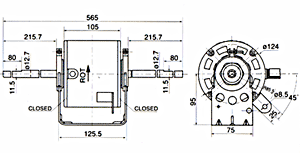

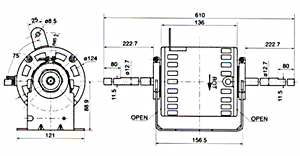

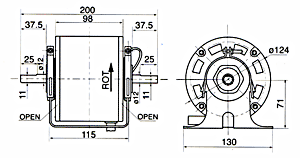

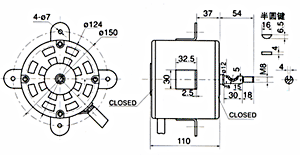

Dimensions for 0120psc series AC motor
