Specifications for 42BY series PM step motor

Model Step Angle  (Deg.) No.of phase  Voltage   (V)  Current  (A) Resistance  (Ω) Inductance  (mH) Holding Torque  (g.cm) Detent Torque  (g.cm) Rotor Inertia (g.c) Lends Wdg Fig
42BY48L01 7.5 4 12 0.18 70   500 125 9.6 UL1007 26AWG c 1
42BY48L09 7.5 4 9 0.58 15.5   800 125 7.5 UL1007 26AWG c 2
42BY48L013 7.5 4 12 0.2 60   450 125 7.5 UL1007 26AWG b 3
42BY48H02 7.5 4 12 0.25 48   550 125 9.6 UL1007 26AWG c 4
42BY48H07B 7.5 4 12 0.142 85   750 200 9.6 UL1061 28AWG b 5
42BY48S01 7.5 4 12 0.3 40   550 100 9.6 UL1007 26AWG b 6
42BY48S11 7.5 4 12 0.21 57   550 90 9.6 UL1007 26AWG b 7

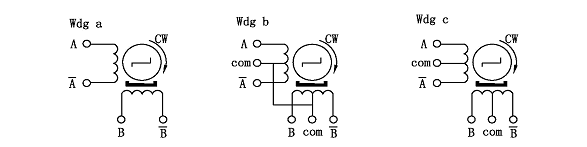

Wiring diagram for 42BY series PM step motor

Dimension for 42BY series PM step motor
