Specifications for BYHJ series PM step motor

Model Step Angle  (Deg.) No.of phase  Voltage   (V)  Current  (A) Resistance  (Ω) Inductance  (mH) Moderating Ratio No-load pull out Frequency No-load Starting Frequency Pullin Torque Detent Torque Wdg Fig
15BYHJ50 18/50 2 5 0.5 10 1.76 1/50 1200 1100 180   a 1
25BYHJ05-01 7.5/5 2 2.6 0.52 5   1/5 550 450 75 150 a 2
25BYHJ10-01 7.5/10 4 5 0.5 10 3.95 1/10 820 720 400 450 d 3
25BYHJ20-01 15/20 4 12 0.08 150   1/20 700 600 500   d 4
25BYHJ30-01 7.5/30 4 13.3 0.11 120   1/30 780 680 750 1400 d 4
35BYHJ01 7.5/19 4 24 0.22 110   1/19 500 400 1710 2280 b 5
35BYHJ08 7.5/8.4 4 12 0.4 30 16.2 1/8.4 600 500 840   b 6
35BYHJ19 7.5/19 4 12 0.4 30 16.2 1/19 460 360 1900 2600 b 5
35BYHJ30 7.5/30 4 12 0.4 30 16.2 1/30 600 500 3000   b 6
35BYHJ60 7.5/60 4 12 0.4 30 16.2 1/60 520 420 6000   b 6
35BYHJ120 7.5/120 4 12 0.4 30 16.2 1/120 500 400 1200   b 6
35BYSJ16 7.5/16 4 12 0.23 52.5   1/16 670 570 1800 1000 b 7
42BYHJ01 7.5/24 4 12 0.32 27 15.1 1/24 480 380 1600 2500 c 8

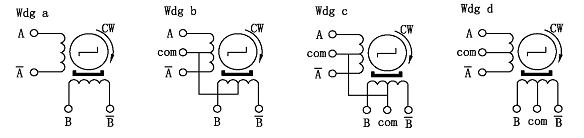

Wiring diagram for BYHJ series PM step motor

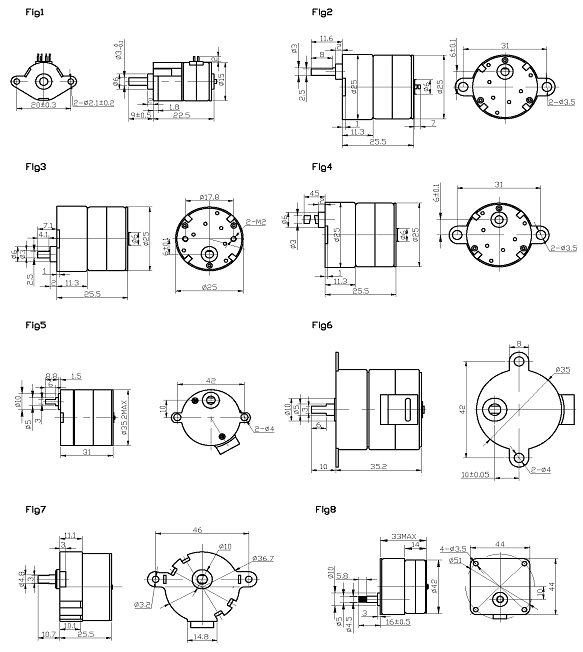

Dimension for BYHJ series PM step motor
