Specifications for 110ZYT series DC motor


Model Terminal Voltage No Load Data Rated Load Data Body Length
(VDC) Amps RPM N-m Amps RPM (mm)
110ZYT006 12 3 1800 1.7 30.0 1500 200
110ZYT007-1 12 4.9 3270 1 34.6 2708 200
110ZYT007-2 24 2.6 3350 1.6 26.0 3072 200
110ZYT008-1 48 2.5 3560 1.6 14.3 3304 200
110ZYT008-2 48 2.5 3560 1.6 14.3 3304 200

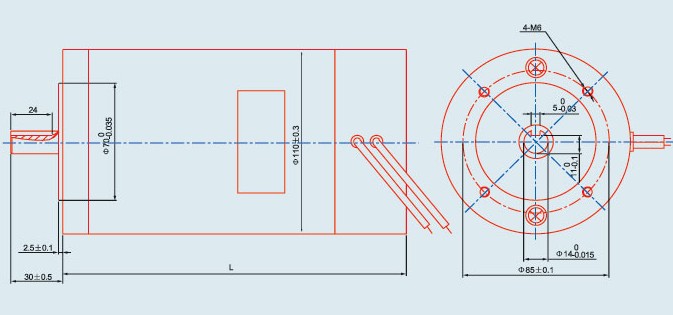

Outline drawing for 110ZYT series DC motor
