Specifications for 55ZYT series DC motor


Model Terminal Voltage No Load Data Rated Load Data Body Length
(VDC) Amps RPM N-m Amps RPM (mm)
55ZYT001 30 0.3 1800 0.15 1.2 1400 74
55ZYT002 24 0.4 3600 0.15 2.7 3000 74

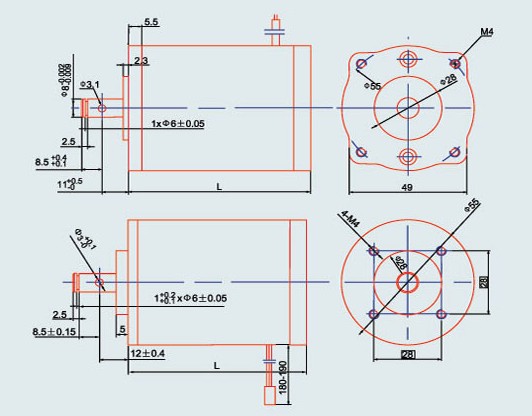

Outline drawing for 55ZYT series DC motor
