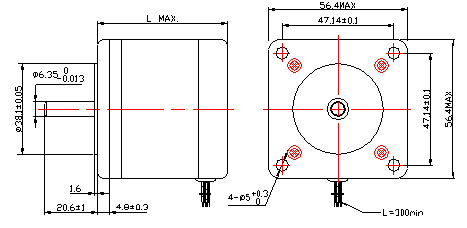

Dimension for 57BYG series step motor

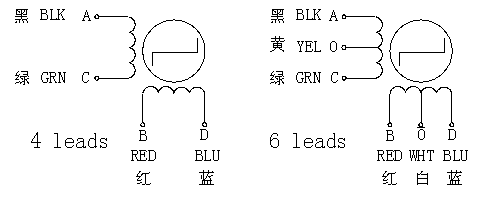

Wiring diagram for 57BYG series step motor

Specifications for 57BYG series step motor

Model



Step angle   Motor Length Rated Voltage  Rated Current Phase Resistance Phase Inductance Holding Torque Lead Wire Rotor Inertia Detent Torque Motor Weight
( ° )  (mm)  (V)  (A) ( Ω ) (mH)  (g.cm) (NO.) (g. c) (g.cm) (kg)
57BYG001  1.8 41 12.2 0.38 32 30 3 6 57 0.18 0.54
57BYG003  1.8 41 12 0.6 20 18 3.3 6 57 0.18 0.54
57BYG006  1.8 41 3.96 1.1 3.6 3.5 3 8 57 0.18 0.54
57BYG202  1.8 51 12.2 0.38 32 30 3.5 6 110 0.18 0.54
57BYG220  1.8 51 3.3 1.5 2.2 8.5 5.8 4 110 0.35 0.6
57BYG241  1.8 51 1.68 3 0.56 1.8 6 4 110 0.35 0.6
57BYG402  1.8 57 12 0.6 20 27 5.8 6 135 0.35 0.6
57BYG410  1.8 57 2.4 2.4 1 2 6 6 135 0.42 0.65
57BYG424  1.8 57 3.2 1 3.2 5.5 4.5 4 135 0.42 0.65
57BYG601  1.8 76 12 0.6 20 25 9 6 200 0.42 0.65
57BYG606  1.8 76 5.4 1.5 3.6 6.2 8.8 6 200 0.72 0.95
57BYG621  1.8 76 3.96 2.2 1.8 6 12.5 4 200 0.72 0.95
57BYG100-001  1.8 100 2.1 2 1.05 4.5 12 4 300 0.95 1.25
