Specifications for 63ZYT series DC motor


Model Terminal Voltage No Load Data Rated Load Data Body Length
(VDC) Amps RPM N-m Amps RPM (mm)
63ZYT001 36 0.3 3500 0.3 3.5 2800 110
63ZYT015 90 0.15 3470 0.25 1.28 2784 100
63ZYT026 24 0.6 4000 0.4 7.0 3000 100

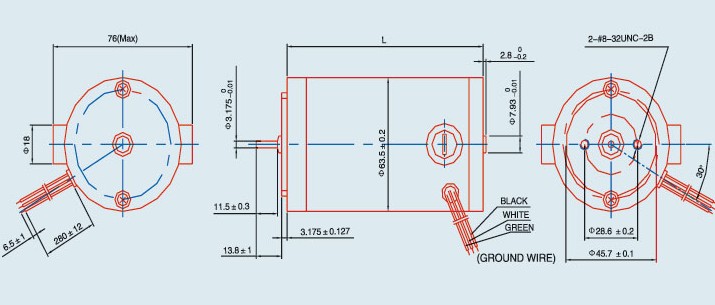

Outline drawing for 63ZYT series DC motor
