Specifications for 76ZYT series DC motor


Model Terminal Voltage No Load Data Rated Load Data Body Length
(VDC) Amps RPM N-m Amps RPM (mm)
76ZYT007 12 2.6 3850 0.4 16.0 3200 133.5
76ZYT008 24 0.9 3200 0.12 2.3 3088 115

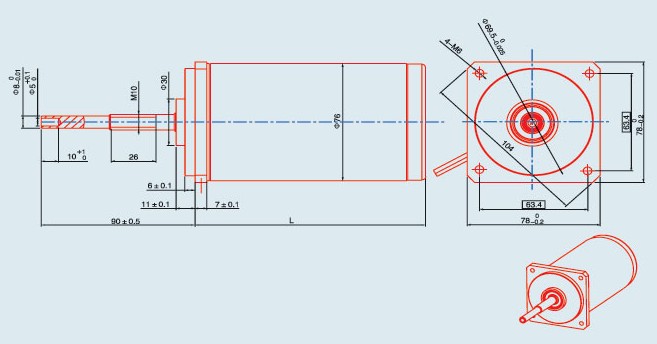

Outline drawing for 76ZYT series DC motor
