Specifications for 0105psc series AC motor


Model Voltage Frequency Nominal output power Current Rated speed Capacitor
(V) (Hz) (W) (A) (r/min) (μF/V)
YYF105-35-4S 220-240 50 35 0.45 1100/3SP 1.5µF/450V
YYF105-55-4S 220-240 50 55 0.7 1100/1SP 2.5µF/450V
YYF105-75-4S 220-240 50 75 0.7 1200/1SP 4µF/450V
YYF105-70-4D 220-240 50/60 70 0.7 1425/1725/1SP 4µF/450V
YYF105-90-4D 220-240 50 90 0.9 900/1SP 6µF/450V
YYF105-150-2D 220-240 50 150 1.1 1350/1SP 6µF/450V

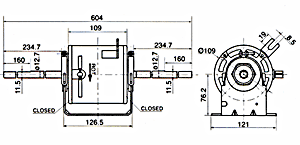

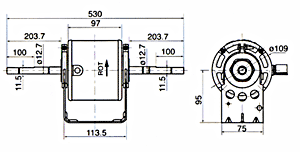

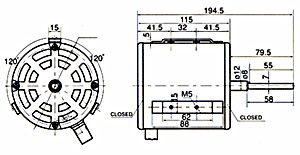

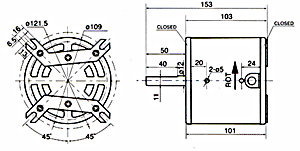

Dimensions for 0105psc series AC motor
