Specifications for Centrifugal Blowers


Model Voltage Frepuency Input power Current Airflow Static pressure
(V) (Hz) (W) (Amps) (m³/h) (Pa)
FL097034Y-01 220 50 37 0.33 175 240
FL097034Y-02 220 50 35 0.31 135 240
FL097034Y-03 220 50 35 0.31 135 240
FL108034Y-01 220 50 51 0.51 190 300
FL108042Y-01 220 50 55 0.5 165 315
FL085034Y-01 220 50 25 0.22 100 170
FL130038Y-01 220 50 28 0.13 100 300
FL140059Y-01 220 50 105 0.5 350 350
FL097040Y-01 220 50 31 0.3 100 235

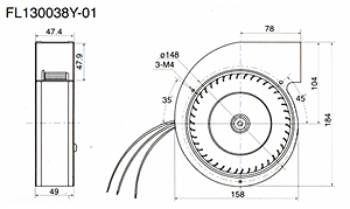

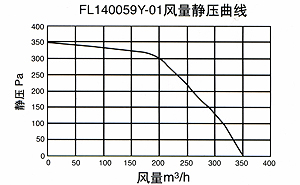

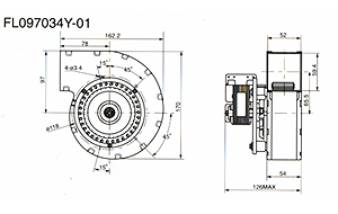

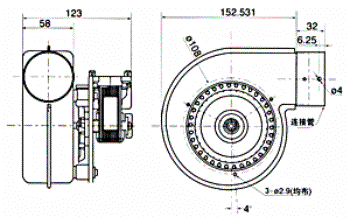

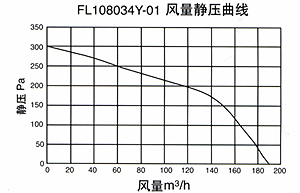

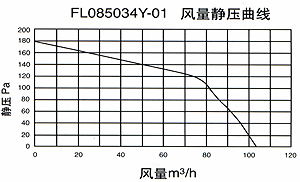

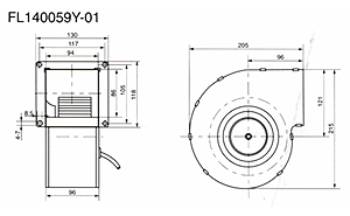

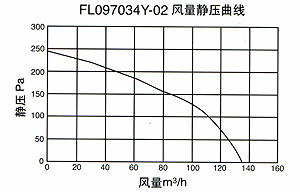

Dimensions and Airflow vs Static Pressure Curve
