Specifications for Worm Gear DC motor ( ZJD series )


Model Terminal Voltage Rated Load Data Gear Ratio Fig
(VDC) N-m Amps RPM

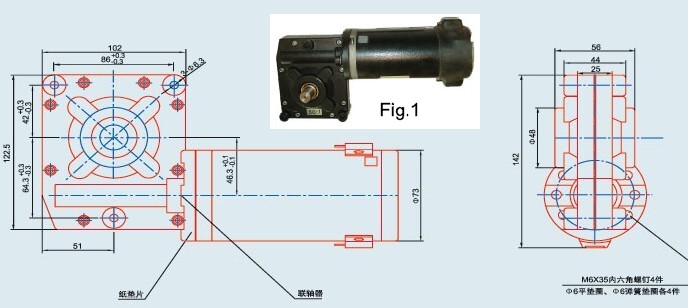

ZJD7301+MCP4-501 24 9.1 5.3 58 50:1 1
ZJD7302+MCP4-501 24 8 5.1 70 50:1

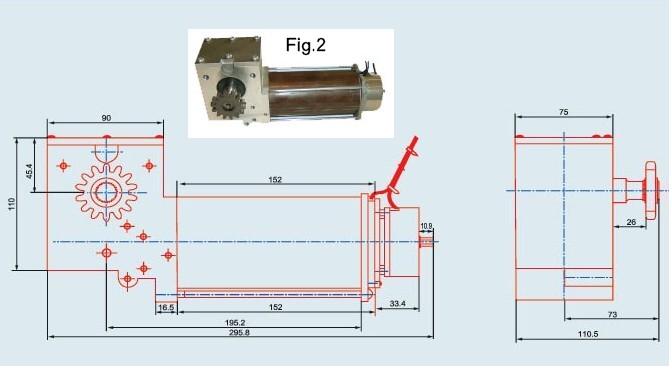

ZJD7508 24 40 20.8 34.5 34:1 2

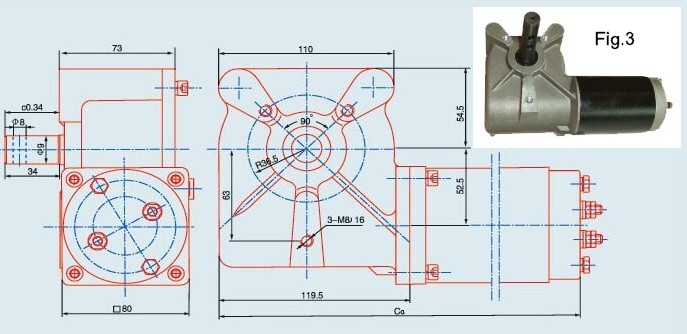

ZJD8025 12 21 33 40 90:1 3

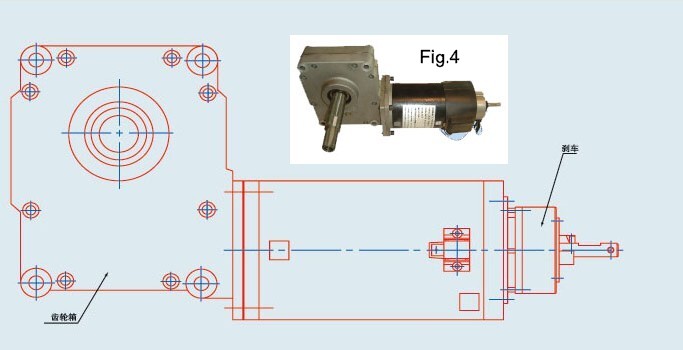

ZJD90+MCP2/301 12 no-load 3 166 30:1 4
ZJD90+MCP2/601 12 no-load 1.7 83 60:1

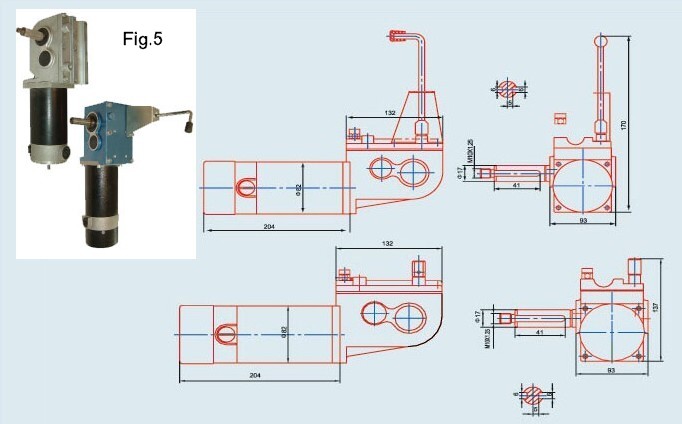

ZJD110 24 14.6 20 141 32:1 5
ZJD140 24 14.6 18 131 32:2
ZJD603 24 14.6 10.7 84 32:3


Outline drawing for Worm Gear DC motor ( ZJD series )
