Specifications for 20BY series PM step motor

Model Step Angle  (Deg.) No.of phase  Voltage   (V)  Current  (A) Resistance  (Ω) Inductance  (mH) Holding Torque  (g.cm) Detent Torque  (g.cm) Rotor Inertia (g.c㎡) Lends Wdg Fig
20BY20L01 18 2 5 0.5 10   60 20 0.6 UL1061 28AWG a 1
20BY20L02 18 4 5 0.4 13   40 20 0.6   b 2
20BY20L014 18 4 12 0.4 30   55 7.5 0.6 UL1571 28AWG c 3
20BY20Y-02 18 2 5 0.33 15   50 10 0.6 UL1095 28AWG a 4
20BYUAG2 18 4 12 0.07 170   35 7.5 0.6 UL2651 28AWG b 5

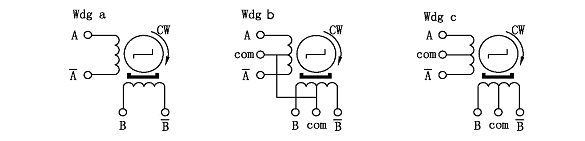

Wiring diagram for 20BY series PM step motor

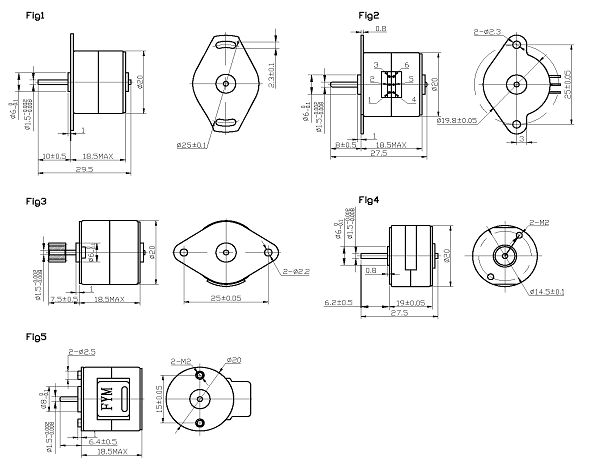

Dimension for 20BY series PM step motor
