Specifications for 25BY series PM step motor

Model Step Angle  (Deg.) No.of phase  Voltage   (V)  Current  (A) Resistance  (Ω) Inductance  (mH) Holding Torque  (g.cm) Detent Torque  (g.cm) Rotor Inertia (g.c㎡) Lends Wdg Fig
25BY24L01 15 4 9 0.45 20   150 75 1.0 UL1061 28AWG c 1
25BY24L02 15 4 12 0.4 30   150 75 1.0 UL1061 28AWG c 2
25BY2416 15 2 24 0.066 360   80 25 0.6 UL1007 26AWG a 3
25BY48L01 7.5 4 5 0.5 10   110 45 1.0 UL1061 28AWG c 4
25BY48L029 7.5 4 24 0.4 60   200 50 1.0 UL1061 28AWG c 5
25BY4803B 7.5 4 12 0.25 50   160 35 1.0 UL1061 28AWG c 6
25BY4809 7.5 4 20 0.43 50   155 45 1.0 UL1095 28AWG c 7
25BY48Y-02 7.5 2 5 0.5 10   150 40 1.0 UL1061 28AWG a 8
EDM 7.5 4 12 0.08 150 36 85 30 1.0   c 9

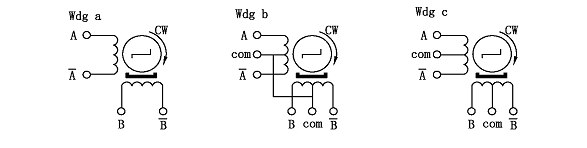

Wiring diagram for 25BY series PM step motor

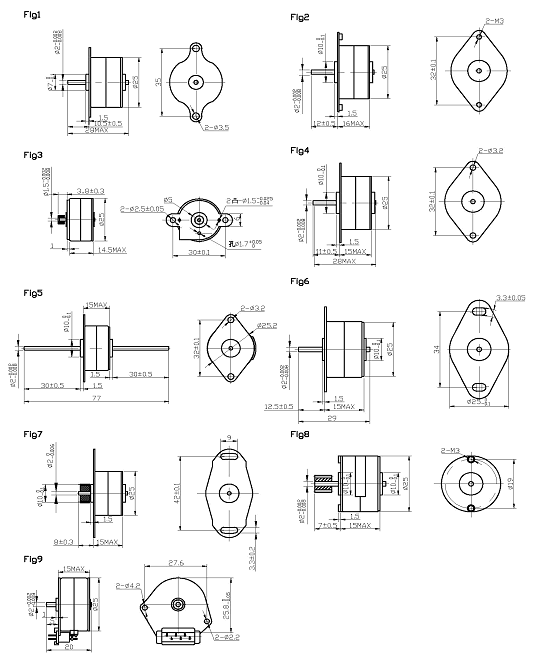

Dimension for 25BY series PM step motor
