Specifications for 25BYZ series PM step motor

Model Step Angle  (Deg.) No.of phase  Voltage   (V)  Current  (A) Resistance  (Ω) Inductance  (mH) Step Avail  (mm) Push Torque  (N)  Journey    (mm) Lends Wdg Fig
25BYZ-A01 15 2 12 0.23 53   0.0417 25 12 AF-200   AWG28# a 1
25BYZ-A02 15 4 12 0.23 53   0.0417 25 12 UL1061 AWG28# b 1
25BYZ-A04 15 4 5 0.23 22   0.0417 7 12 UL1061 AWG28# b 1
25BYZ-A05 15 2 5 0.23 22 10.5 0.0417 10 12 AF-200   AWG28# a 2
25BYZ-A01(09) 15 2 12 0.23 53   0.0417 25 12 AF-200   AWG28# a 3
25BYZ-B01 15 2 12 0.23 53   0.0417 25 40 AF-200  AWG28# a 4
25BYZ-B02 15 2 6 0.5 12   0.0417 7.5 40 AF-200   AWG28# a 4
25BYZ-B03 15 2 12 0.5 24   0.0417 30 40 AF-200   AWG28# a 4
25BYZ-B04 15 4 5 0.23 22   0.0417 30 40 UL1061 AWG28# b 4

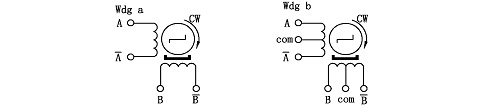

Wiring diagram for 25BYZ series PM step motor

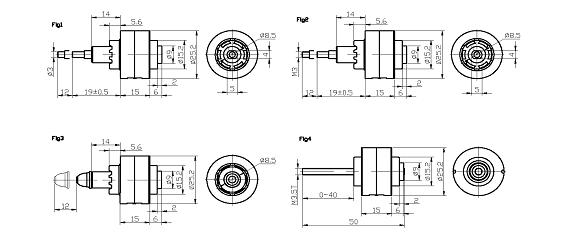

Dimension for 25BYZ series PM step motor
