Specifications for 35BY series PM step motor

Model Step Angle  (Deg.) No.of phase  Voltage   (V)  Current  (A) Resistance  (Ω) Inductance  (mH) Holding Torque  (g.cm) Detent Torque  (g.cm) Rotor Inertia (g.c㎡) Lends Wdg Fig
35BY24L01 15 4 24 0.282 85   450 125 7.5 UL1007 26AWG c 1
35BY48L01 7.5 2 12 0.2 60   550 125 7.5 UL1007 26AWG a 1
35BY48L09 7.5 4 18 1.3 13.5   800 125 7.5 UL1007 26AWG b 2
35BY48L016 7.5 4 24 0.2 120   550 125 7.5 UL1007 26AWG b 3
35BY48L037 7.5 4 24 0.2 118   520 110 7.5 UL1061 28AWG b 4
35BY48S01 7.5 2 5 0.71 7   450 75 7.5 UL1007 26AWG a 5
35BY48S011 7.5 2 5 0.4 12.5 11.56 390 75 7.5 UL1007 26AWG a 6
35BY48S015 7.5 2 5 0.67 7.5   400 60 7.5 UL1007 26AWG a 7

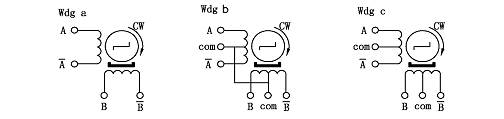

Wiring diagram for 35BY series PM step motor

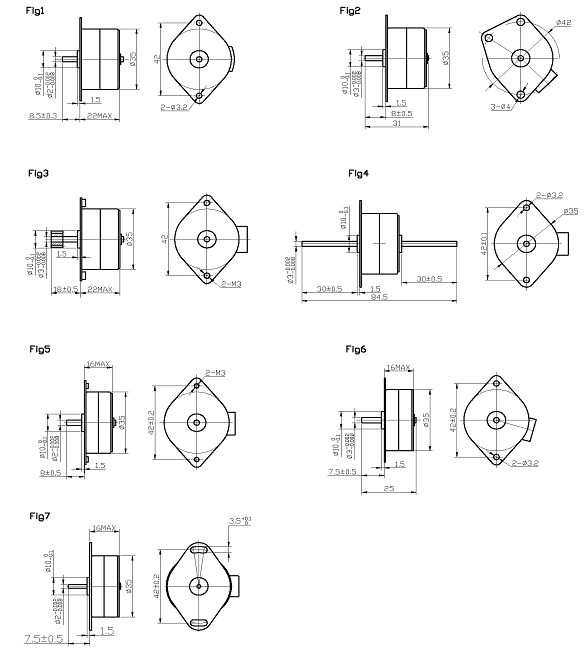

Dimension for 35BY series PM step motor
