Specifications for 42BY series PM step motor

Model Step Angle  (Deg.) No.of phase  Voltage   (V)  Current  (A) Resistance  (Ω) Inductance  (mH) Holding Torque  (g.cm) Detent Torque  (g.cm) Rotor Inertia (g.c㎡) Lends Wdg Fig
42BY48L01 7.5 4 12 0.18 70   500 125 9.6 UL1007 26AWG c 1
42BY48L09 7.5 4 9 0.58 15.5   800 125 7.5 UL1007 26AWG c 2
42BY48L013 7.5 4 12 0.2 60   450 125 7.5 UL1007 26AWG b 3
42BY48H02 7.5 4 12 0.25 48   550 125 9.6 UL1007 26AWG c 4
42BY48H07B 7.5 4 12 0.142 85   750 200 9.6 UL1061 28AWG b 5
42BY48S01 7.5 4 12 0.3 40   550 100 9.6 UL1007 26AWG b 6
42BY48S11 7.5 4 12 0.21 57   550 90 9.6 UL1007 26AWG b 7

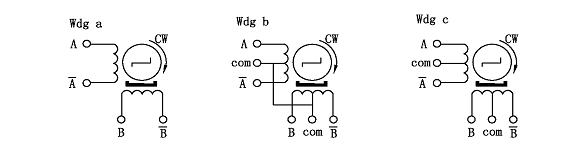

Wiring diagram for 42BY series PM step motor

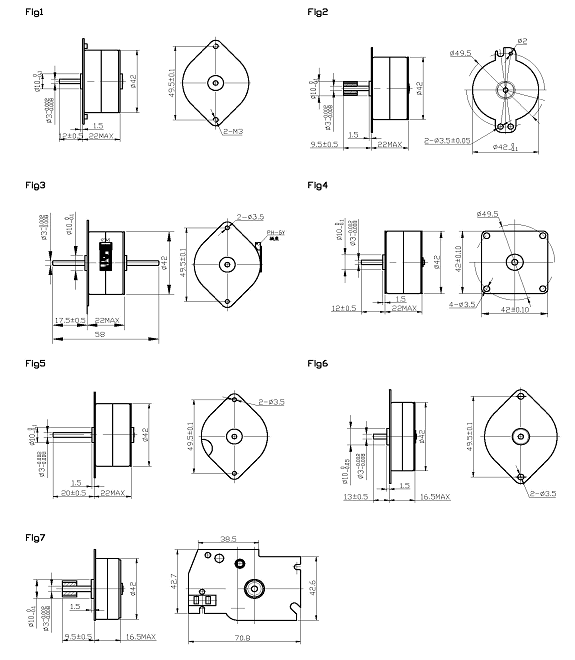

Dimension for 42BY series PM step motor
