Specifications for  PM Liner step motor

Model Step Angle  (Deg.) No.of phase  Voltage   (V)  Current  (A) Resistance  (Ω) Inductance  (mH) Holding Torque  (g.cm) Pull-in Torque  (g.cm) Detent Torque  (g.cm) Lends Wdg Fig
15BYZ-01 18 2 12 0.07 170   40    5(at  500Hz) 16 UL1571 30AWG a 1
20BYZ-01 18 2 5 0.5 10   60  10(at 200Hz) 20   a.c 2
25BY48Z-01 7.5 4 5 0.5 10   120  40(at 100Hz) 45 UL1061 28AWG a.b 3
25BY24Z-01 15 4 9 0.45 20   135  20(at 200Hz) 60 UL1061 28AWG a.b 3
35BY48LZ-01 7.5 4 12 0.2 60   520  50(at 200Hz) 125 UL1007 26AWG b 4
35BY24LZ-01 15 4 24 0.28 85   450 110(at 100Hz) 125 UL1007 26AWG b 4
35BY48SZ-01 7.5 4 5 0.71 7   450  60(at 200Hz) 75 UL1007 26AWG b 5
42BY48LZ-01 7.5 4 12 0.18 70   500  60(at 200Hz) 125 UL1007 26AWG b 6
42BY48SZ-01 7.5 4 12 0.3 40   550  70(at 200Hz) 100 UL1007 26AWG b 7
57BY48Z-01 7.5 4 12 0.6 21   1500 320(at 100Hz) 425 UL1007 26AWG a.c 8

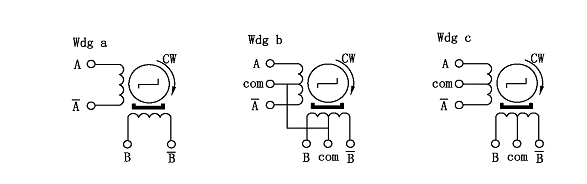

Wiring diagram for PM Liner step motor

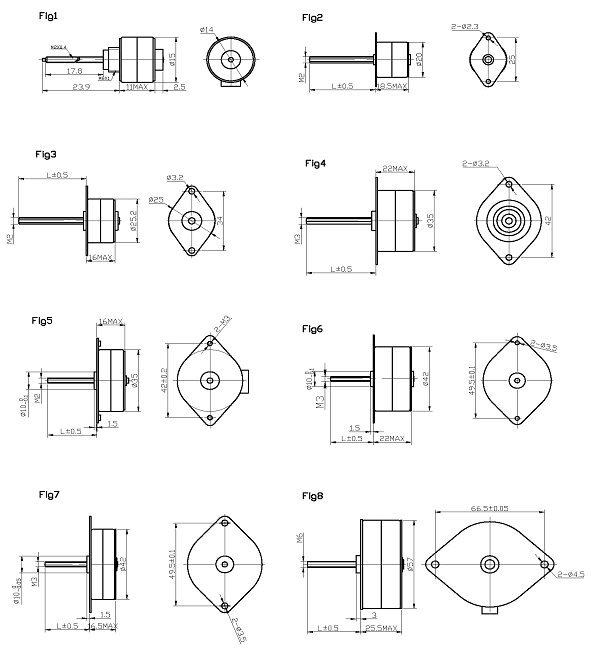

Dimension for PM Liner step motor
